CAD Drawings from Co-Mac
Are you manufacturing something and building hardware into the design?
Co-Mac’s new online catalogue has the part, along with drawing and step files. That means you can
now take our step file, import to your cad system and know exactly what you’re manufacturing.
Check out this video for a walkthrough of how it works:
Just follow these easy steps:
- Navigate to your CAD software
- Open the saved step file
- Insert it into your assembly
- Mate all relevant surfaces
Now you can identify all fixture points and any cut outs that may be required.

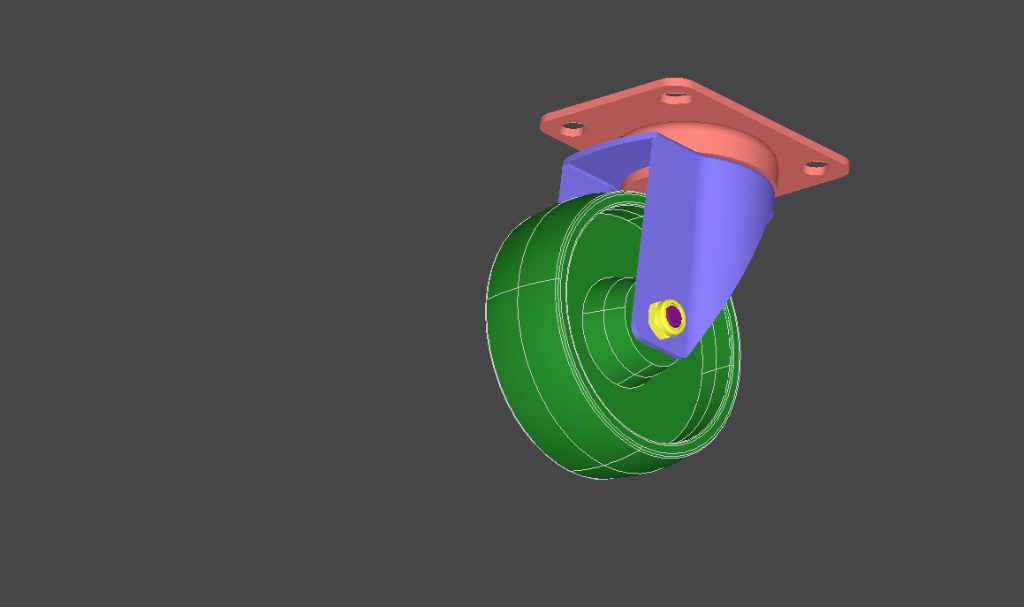

CLICK HERE to see our new castor wheel CAD drawings
CLICK HERE to download a FREE .STEP file viewer
